PIR insulation board
External wall insulation
Internal wall insulation

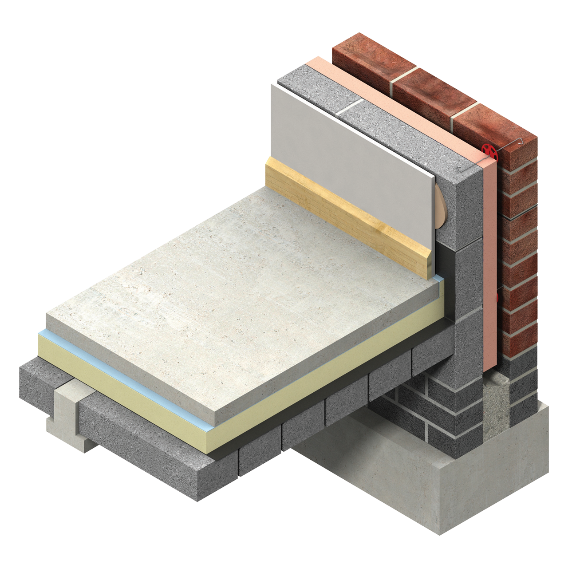

Ground floor insulation

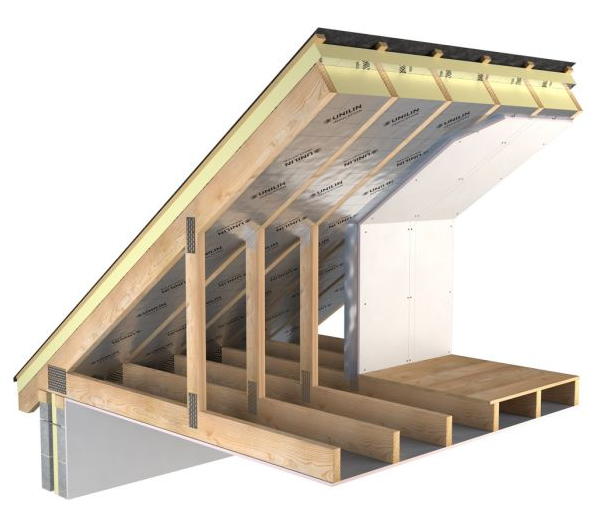

Attic floor insulation

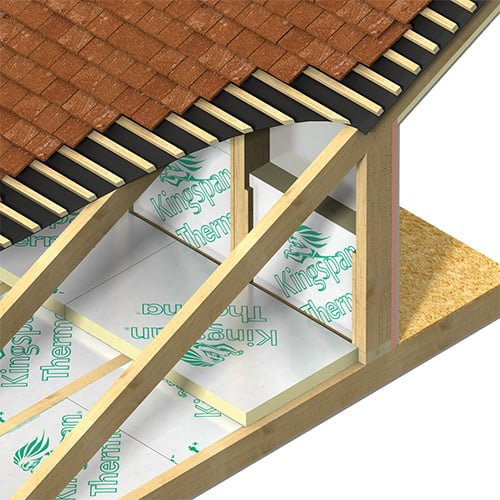

Pitched roof insulation

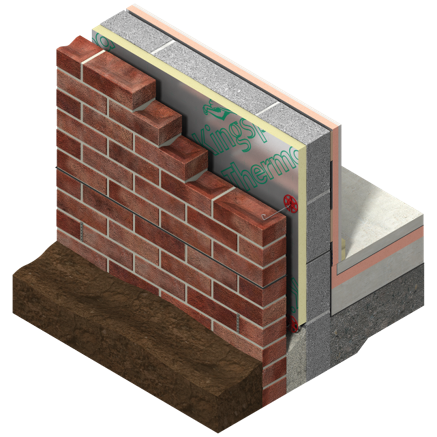

Cavity wall insulation

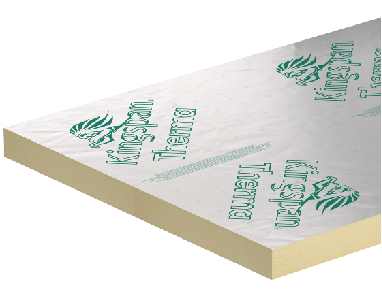

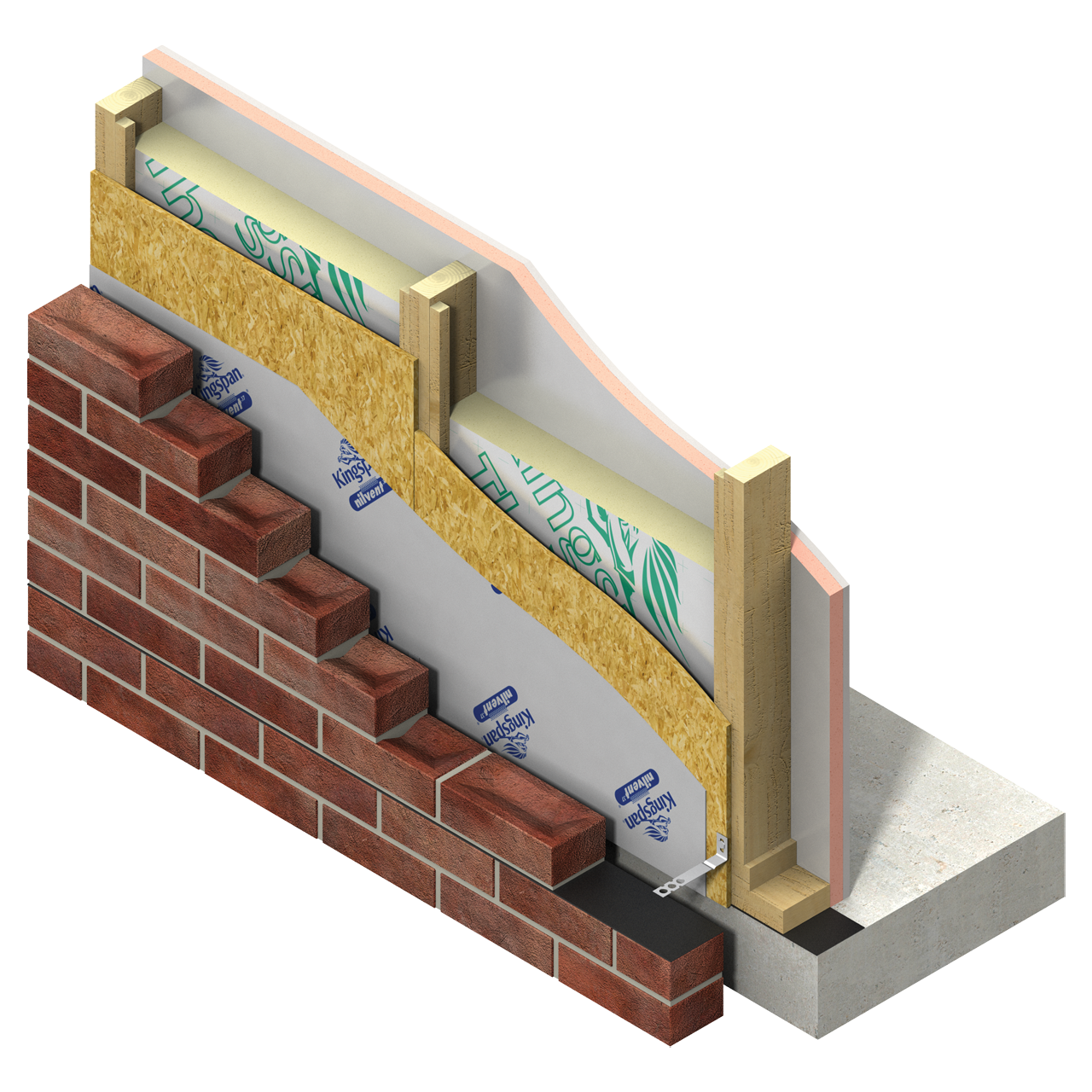

Kingspan PIR insulation board is a premium quality board designed for external wall, internal wall, cavity wall, pitched roof and attic floor use. Its low thermal conductivity allows for high efficiency using a thin insulation board, making it an excellent choice for pitched roofs. The exceptional insulation properties of this product help minimise heat loss, boost energy efficiency, and improve the overall comfort of buildings.

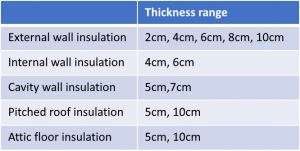

Material: Kingspan PIR insulation board Thickness range: 5cm, 10cm Specification:
1) Fast & easy installation
2) Density: 32kg/m3
3) Thermal Conductivity: 0.022W/mK
4) Compressive Strength: 140kPa
5) Water vapour resistivity: 100MN.s/g.m
6) Surface Spread of Flame: Class 1

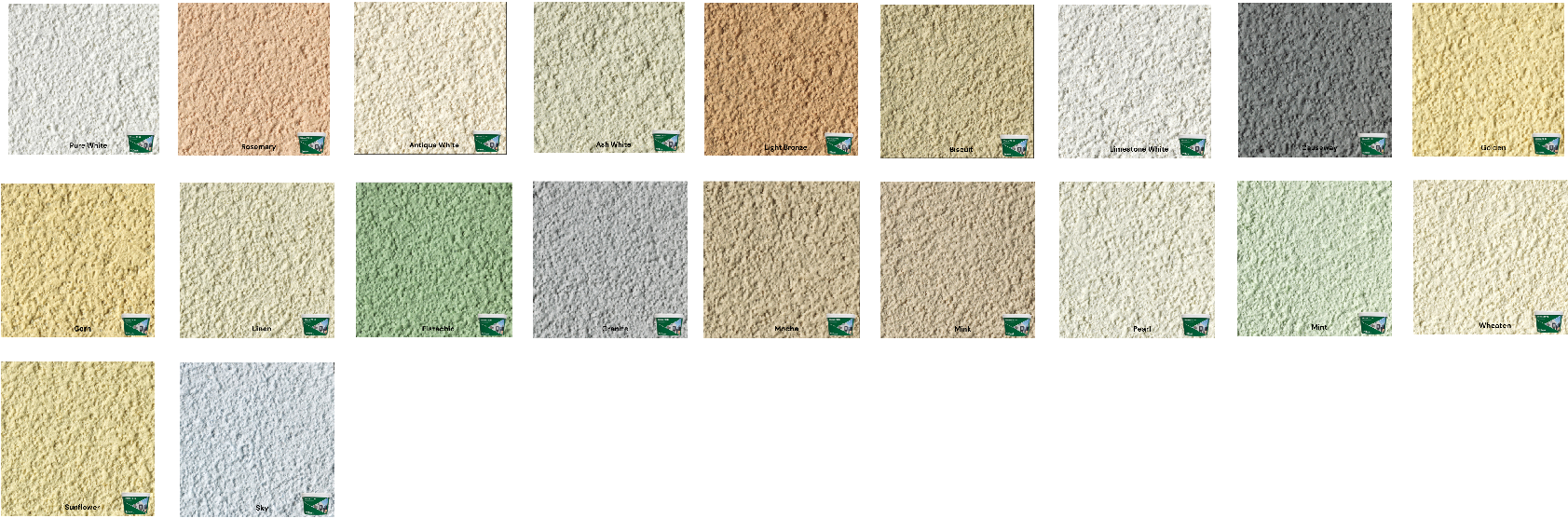

1) Silicone rendering
Alternative rendering
Brick Rend is a specially formulated polymer render, which simulates the appearance of brickwork.
- Thickness: Brick Rend thickness is 6-8mm for the mortar and 3-5mm for the facelayer
- Finish options： Available in a range of colours & effects

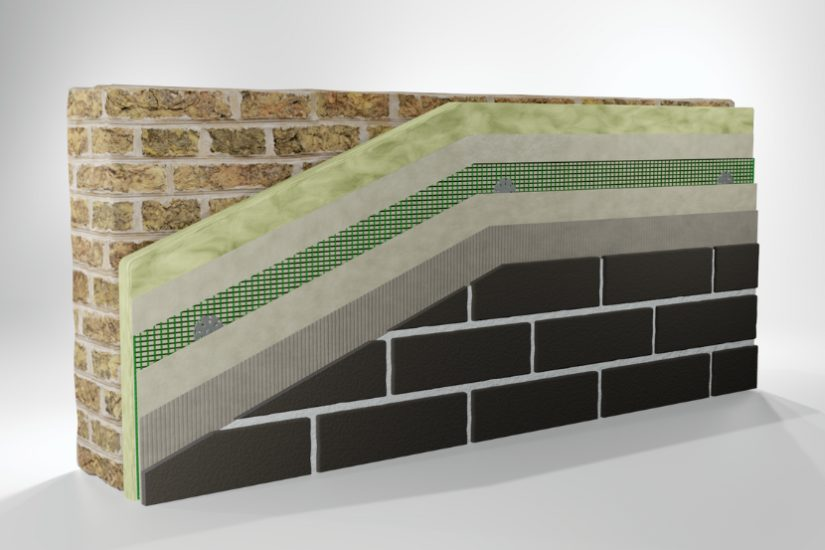

3) Clay brick slip
Quick to install, cost-effective clay brick slip system, which is significantly lighter in weight but retains the look and feel of traditional clay bricks.
Technical Data
Thickness
Typically 15mm, other sizes are available
Finish options
Available in a range of colours & effects
